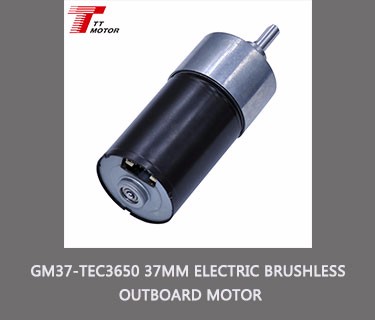

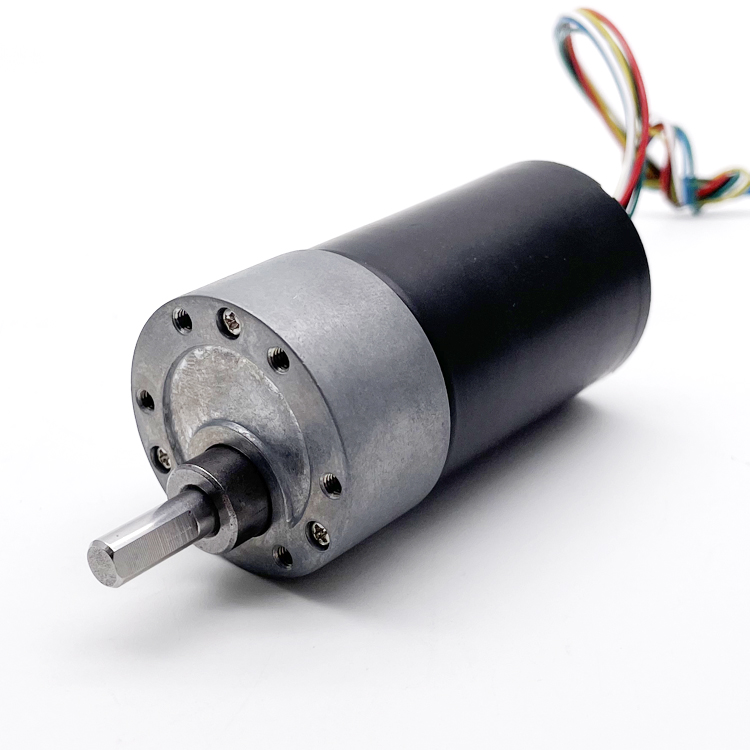

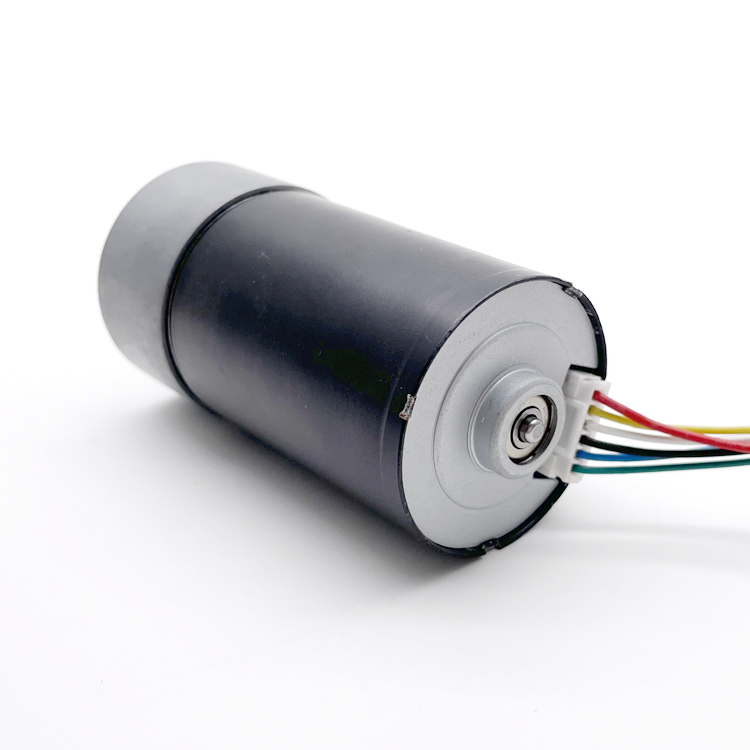

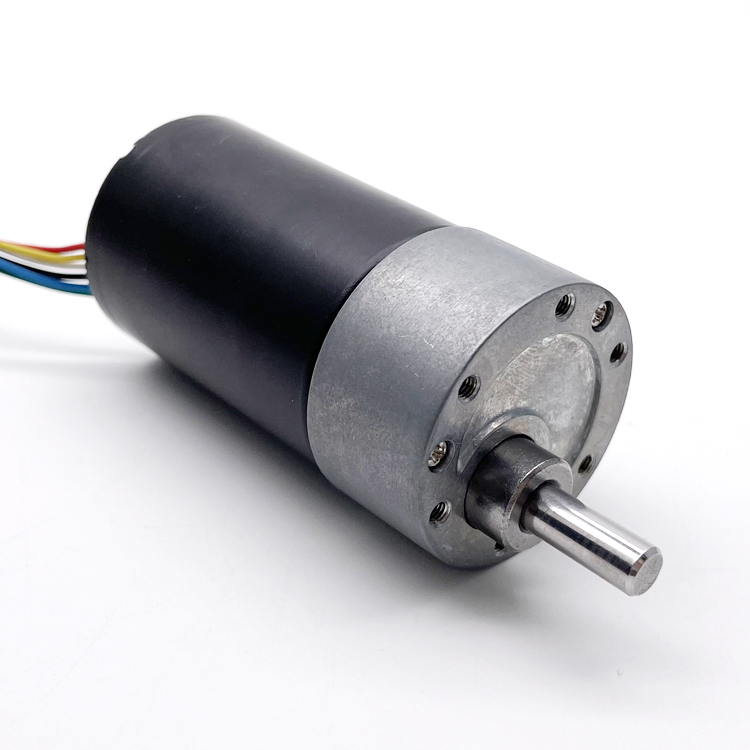

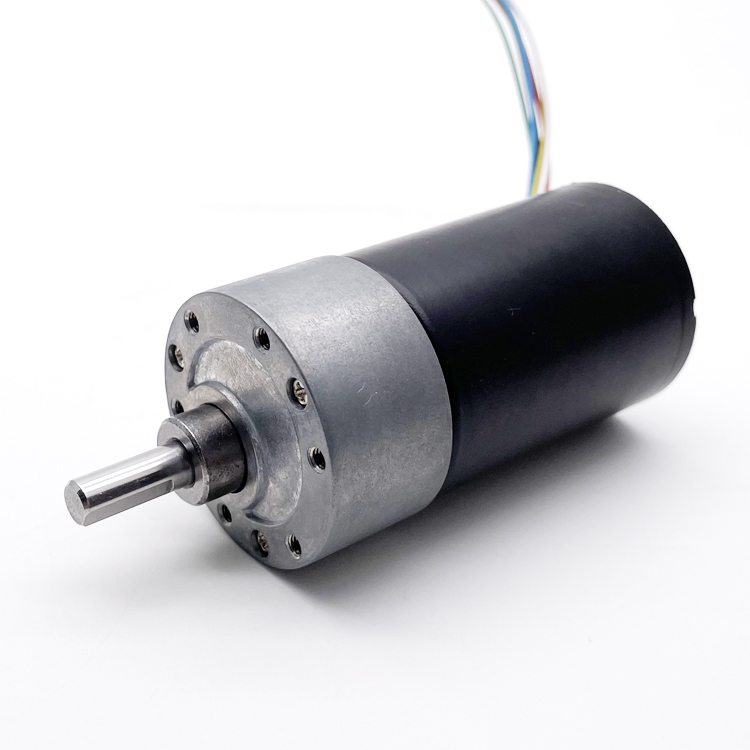

37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor

Product Description

37mm electric bldc motor banner
37mm electric bldc motor 12v 24v mini dc gear motor
Product Description
Main Features:
  • 37mm spur gearbox plus TEC3650 & 3640 brushless motor
  • Small size dc gear motor with low speed and big torque
  • 37mm gear motor provide 1.0Nm torque and more reliable
  • Suitable to small diameter, low noise and big torque application
  • Reduction ratio: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810
Model Parameters: Gear Motor GM37-TEC3650
Model Rated Voltage Rated Speed Output Power No-load Speed Rated Torque Stall Torque No-load Current Rated Current Stall Current
TEC3650-2465 24VDC 5400r/min 11.5W 6500r/min 200g.cm 1150g.cm 200mA 1000mA 2A
TEC3650-2440 24VDC 3200r/min 6.6W 4000r/min 200g.cm 1000g.cm 120mA 600mA 2A
TEC3650-1245 12VDC 3500r/min 8.3W 4500r/min 230g.cm 820g.cm 150mA 800mA 2.5A
GM37-TEC3650-2465-xx Technical Specifications
Reduction ratio 6 10 30 44 56 90 169 270 506
Length mm 19 19 21.5 24 24 24 26.5 26.5 29
No-load speed rpm 1000 650 215 145 110 70 38 24 12.5
Rated speed rpm 830 540 180 122 95 65 34 22 11
Rated torque kg.cm 0.7 1.2 3.6 5.2 6.5 10 10 10 10
Max. tolerance torque kg.cm 2 5 15 15 15 15 15 15 15
GM37-TEC3650-2440-xx Technical Specifications
Reduction ratio 6 10 30 44 56 90 169 270 506
Length mm 19 19 21.5 24 24 24 26.5 26.5 29
No-load speed rpm 620 380 130 90 70 43 23 14.5 7.5
Rated speed rpm 500 320 100 72 55 36 19 12.5 6.5
Rated torque kg.cm 0.7 1.2 3.6 5.2 6.5 10 10 10 10
Max. tolerance torque kg.cm 2 5 15 15 15 15 15 15 15
GM37-TEC3650-1245-xx Technical Specifications
Reduction ratio 6 10 30 44 56 90 169 270 506
Length mm 19 19 21.5 24 24 24 26.5 26.5 29
No-load speed rpm 710 430 150 100 80 50 27 17 9
Rated speed rpm 580 350 115 80 62 39 21 13 7
Rated torque kg.cm 0.9 1.6 4.1 6.1 7.7 10 10 10 10
Max. tolerance torque kg.cm 3.5 5.7 15 15 15 15 15 15 15
Related Product Applications
Industry Category Specific Application Fields
Business Machines ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care Hair Cutting, Hair Care, Massagers.
Power Tools Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical Video, Cameras, Projectors.
Product Application Overview
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Application diagram
Other Applications Matrix
Category Application 1 Application 2 Application 3 Application 4
Business Machines Vending Machines Printers ATM Copiers and Scanners
Camera and Optical Video Cameras Projectors -
Lawn and Garden Lawn Mowers Snow Blowers Trimmers Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Certification 1
Certification 2
Certification 3
Certification 4
Our Company
Our company has been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Company office
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Partner brands
Packing & Delivery
Standard packing methods are applied to ensure safe transport.
Packaging 1
Packaging 2
Packaging 3
Packaging 4
Shipping timelines:
DHL 3-5 working days
UPS 5-7 working days
TNT 5-7 working days
FedEx 7-9 working days
EMS 12-15 working days
China Post / Sea Depends on the destination country
Logistic solutions
Our Customer Feedback
Excellent quality, better price, good service, and on-time delivery.
Feedback screenshot 1
Feedback screenshot 2
Feedback screenshot 3
Feedback screenshot 4
Frequently Asked Questions
How to order?
Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
How about Sample orders?
Samples are available for you. Please contact us for details. Once we charge you the sample fee, rest assured that it will be refunded when you place a formal order.
Which shipping ways are available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipment are available. Other shipping methods can also be arranged. Please reach out if you need delivery through alternative carriers.
How long is the production and shipping time?
Delivery time depends on the quantity you order. Typically, production and processing take 15-25 working days.
My package has missing products. What can I do?
Please contact our support team, and we will crosscheck your order with the package contents. We apologize for any inconvenience caused.
How to confirm the payment?
We accept payment by T/T and PayPal. Other payment options may also be accepted; please contact us before completing transactions through other methods. A 30-50% deposit option is available, with the remaining balance due prior to shipping.
