Product Description

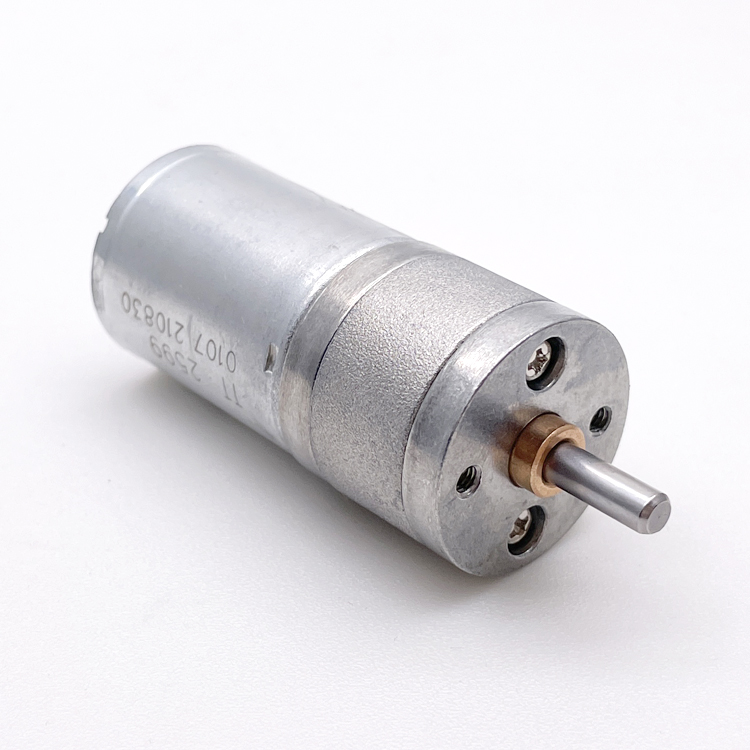

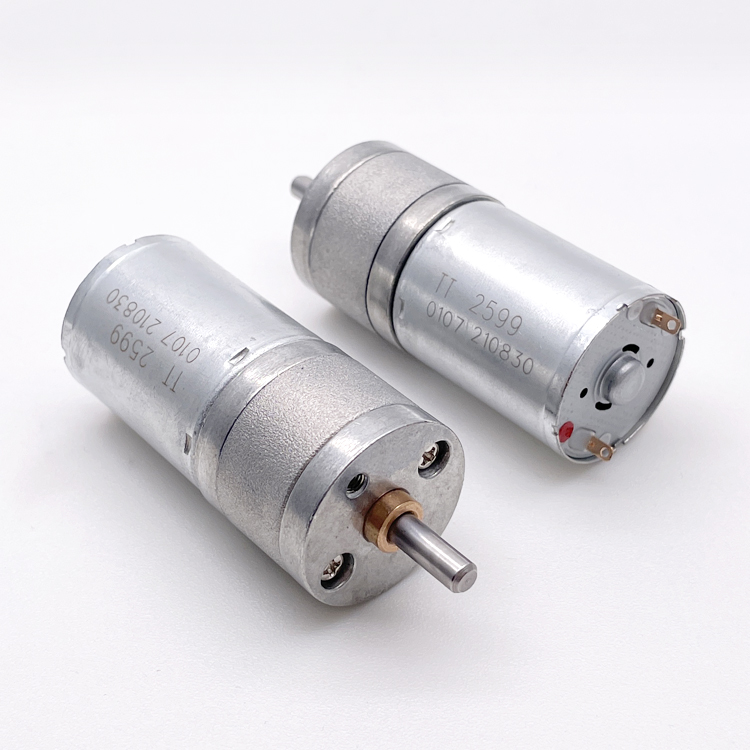

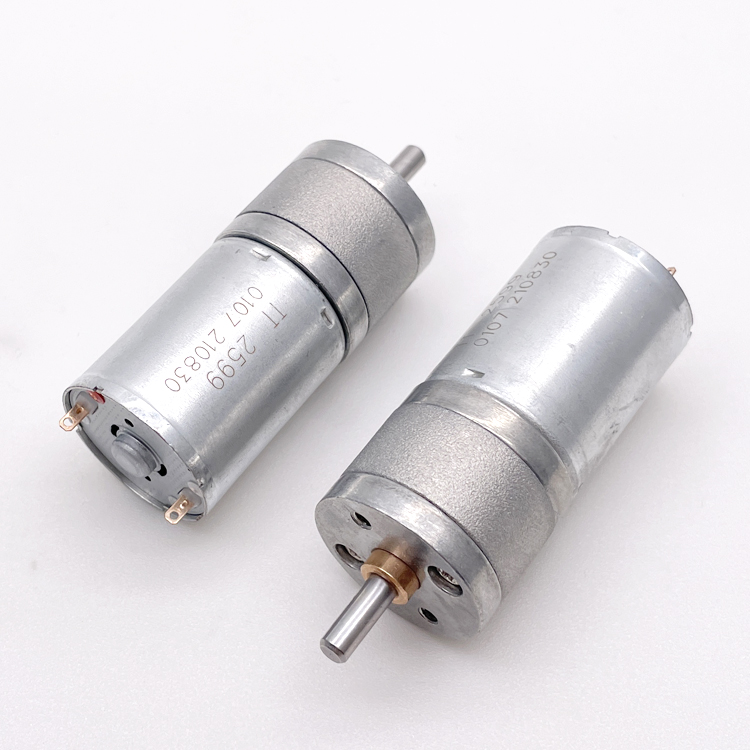

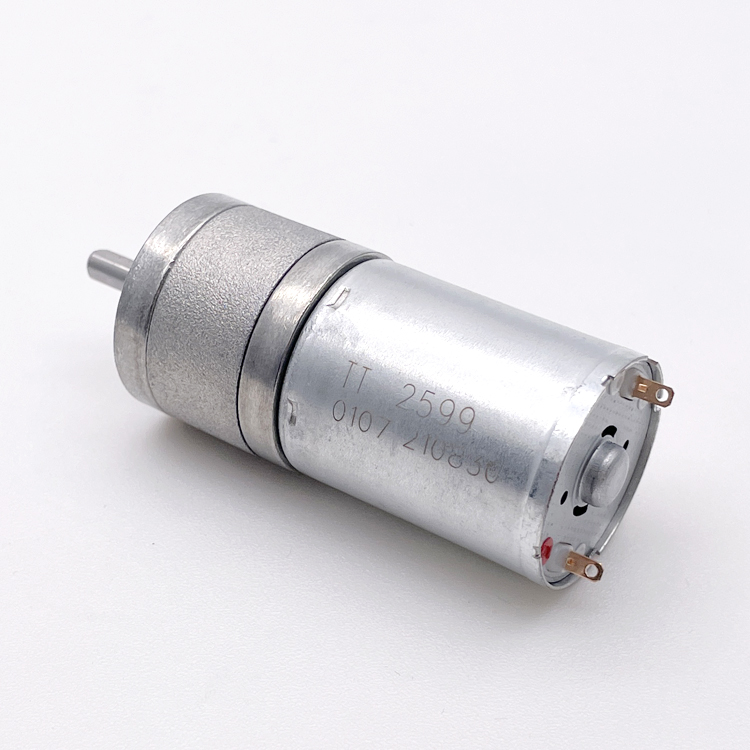

GM25-370CA Electric 12V Encoder DC Gear Motor for Automatic Toys

Product Overview

High-performance micro power transmission solution featuring a 25mm gearbox coupled with permanent magnet DC motor options. Fully compatible with encoders for precise feedback and control.

Product Application

Widely deployed across various automated systems and smart devices:

Automatic door operators and automated systems
Automatic energy-saving bath utilities
Electrical controlled valves and industrial control valves
Oxygen machine systems and medical applications
Optical equipments and precision positioning devices
Automat cordless power tools and portable instruments
Stage lighting, display mechanics, and smart toys

Main Features

Compact Design: 25mm gearbox paired with 370 & 320 permanent magnet DC motors.
High Torque Capacity: Small-sized DC gear motor delivering up to 0.5Nm continuous torque with enhanced reliability.
Low Noise: Engineered specifically for low noise, compact installation spaces, and high torque output demands.

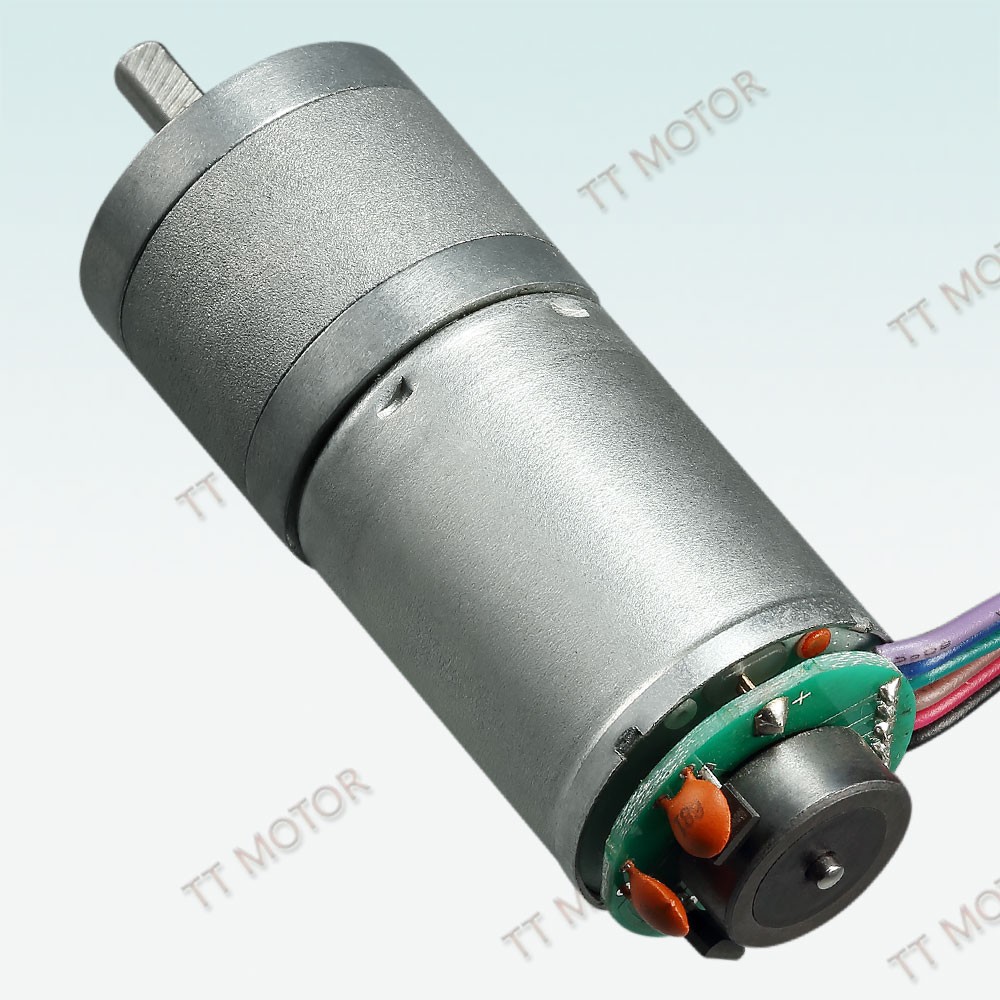

Feedback Integration: Fully compatible with dedicated magnetic encoders (11ppr output resolution).
Wide Range of Ratios: Standard reduction ratios include 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499.

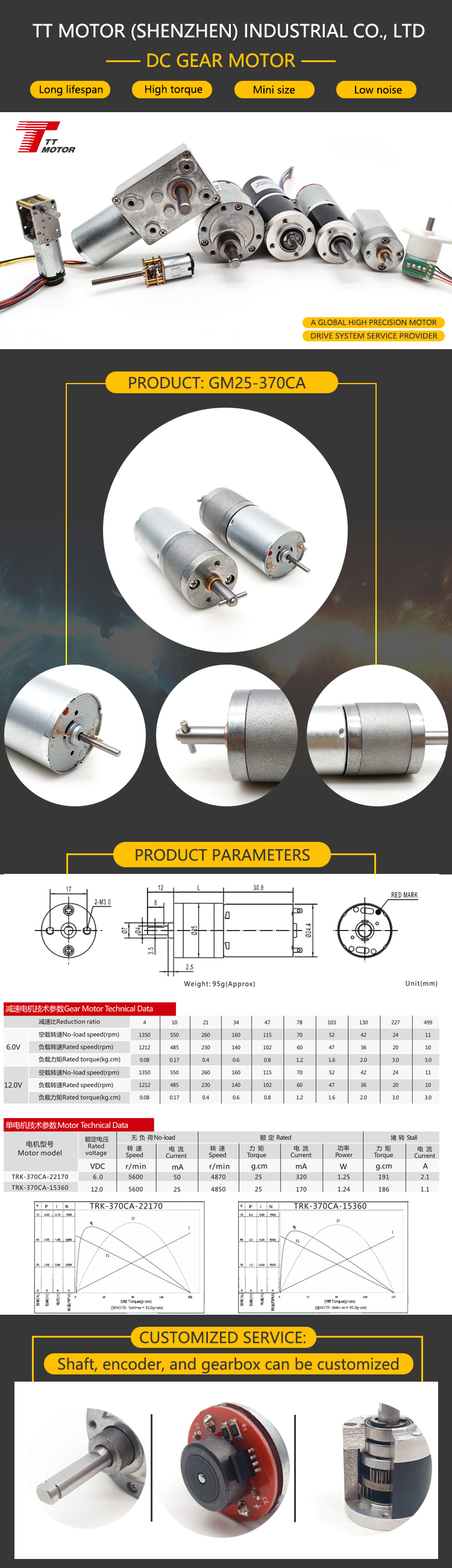

Technical Specifications (GM25-370CA Motor Series)

Model Base	Rated Voltage	No-load Speed	No-load Current	Rated Speed	Rated Torque	Rated Current	Output Power	Stall Torque	Stall Current
TRK-370CA-22170	6 VDC	5600 r/min	50 mA	4800 r/min	24 g.cm	300 mA	1.18 W	186 g.cm	2.1 A
TRK-370CA-15360	12 VDC	5600 r/min	25 mA	4800 r/min	24 g.cm	160 mA	1.18 W	186 g.cm	1.06 A
TRK-370CA-12560	12 VDC	3700 r/min	20 mA	3000 r/min	20 g.cm	90 mA	0.62 W	125 g.cm	0.6 A

Gearbox Ratio Parameters

Model: GM25-370CA-22170-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. momentary tolerance torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Model: GM25-370CA-15360-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. momentary tolerance torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

Model: GM25-370CA-12560-xxx

Reduction ratio	4	10	21	34	47	78	103	130	478
Length (mm)	17	19	19	21	21	23	23	25	27
No-load speed (rpm)	850	340	165	100	75	48	34	27	7.5
Rated speed (rpm)	750	300	145	86	64	38	29	23	6.3
Rated torque (kg.cm)	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max. momentary tolerance torque (kg.cm)	0.3	0.75	1.5	2.6	3.5	10	10	10	10

Packaging & Shipping

Standard high-density shock-absorbing packaging keeps precision micro-motors safe during transit. Standardized box configurations are optimized to reduce volume and secure safe global delivery.

Model Series Reference	Standard Case Pack	Carton Size	Carton Gross Weight
GM12-N20VA / GM25 Series	840 pcs	41.5 * 34.5 * 18.5 CM	10.5 kg

Application Classification Details

Business Machines:
ATM machines, Copiers, Scanners, Currency Handling devices, Point of Sale terminals, Printers, and Vending Machines.

Food and Beverage:
Beverage Dispensing systems, Hand Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Deep Fryers, Ice Makers, and Soy Bean Milk makers.

Camera and Optical:
Video cameras, Security systems, Projectors.

Medical Equipment:
Urine Analyzers, Blood Sugar Analyzers, and precise Injector systems.

Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

Certifications & Quality Control

Client Audits & Industry Reviews

Our Customers & Global Footprint

Manufacturing Excellence & Capabilities

We have been specializing in micro motors, gear motors, and their respective precision parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, power tools, and automated equipment.

With a focus on long-lasting durability and reliability backed by years of development, we export 98% of our output worldwide, pursuing global partnerships with distributors, agents, and end-users.

Frequently Asked Questions (FAQ)

What are the primary applications for the GM25-370CA gear motor?

This motor is suitable for automatic door operators, automated saving bath devices, electric controlled valves, medical oxygen machines, precision optical equipment, cordless power tools, smart toys, and high-torque commercial machinery.

What input voltages does the GM25-370CA series support?

The motor series operates on DC power, with standard model variants designed for 6VDC and 12VDC inputs.

Does this model come equipped with feedback encoders?

Yes. The DC gear motors in this series can be matched with a feedback encoder outputting 11 PPR (pulses per revolution) for precise speed and position control.

What reduction gear ratios are available?

A wide array of gearbox ratios is supported, including standard ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, and 499 depending on the specific model configuration.

How is the output torque capability of the GM25-370CA?

The 25mm gearbox system is capable of delivering up to 0.5Nm of rated torque under nominal operating conditions, with momentary tolerance configurations scaling higher based on the reduction ratio selected.

What are the standard dimensions for packaging and bulk shipping?

The standard case pack contains 840 pieces in a carton. The standard carton measures 41.5 * 34.5 * 18.5 cm, with a total gross weight of approximately 10.5 kg.
