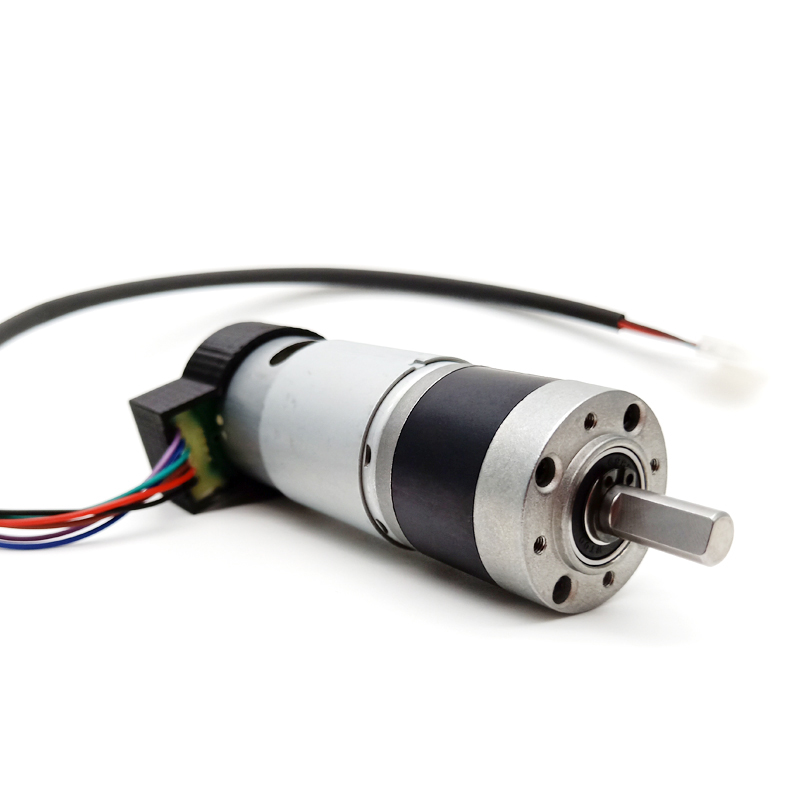

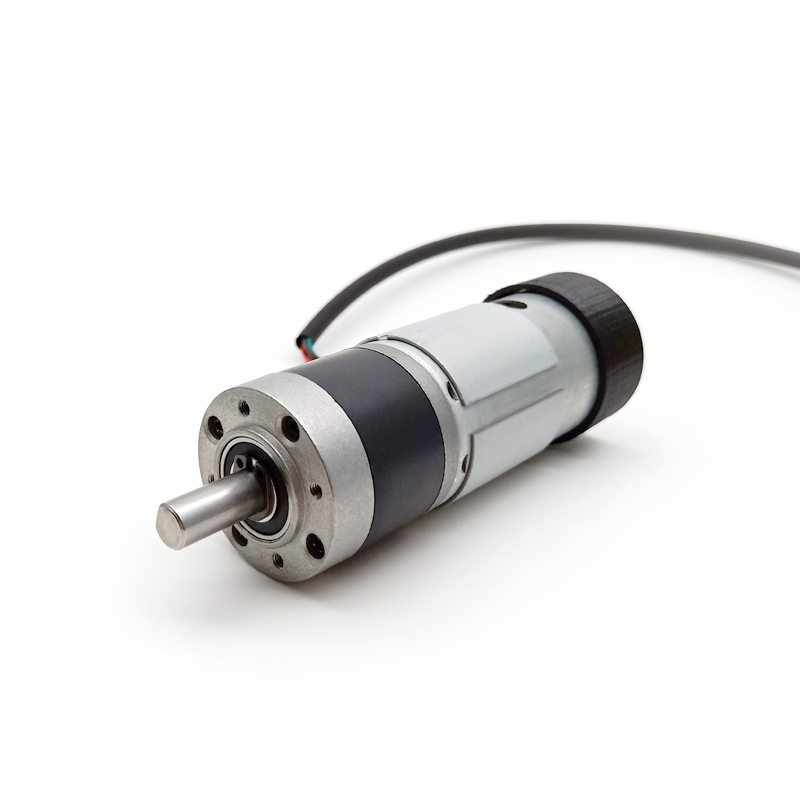

GMP36-555PM-EN Electric Motor DC 24V Planetary Gear Motor Encoder
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V DC gear motor, optical equipment, automat cordless power tool, lighting, etc.

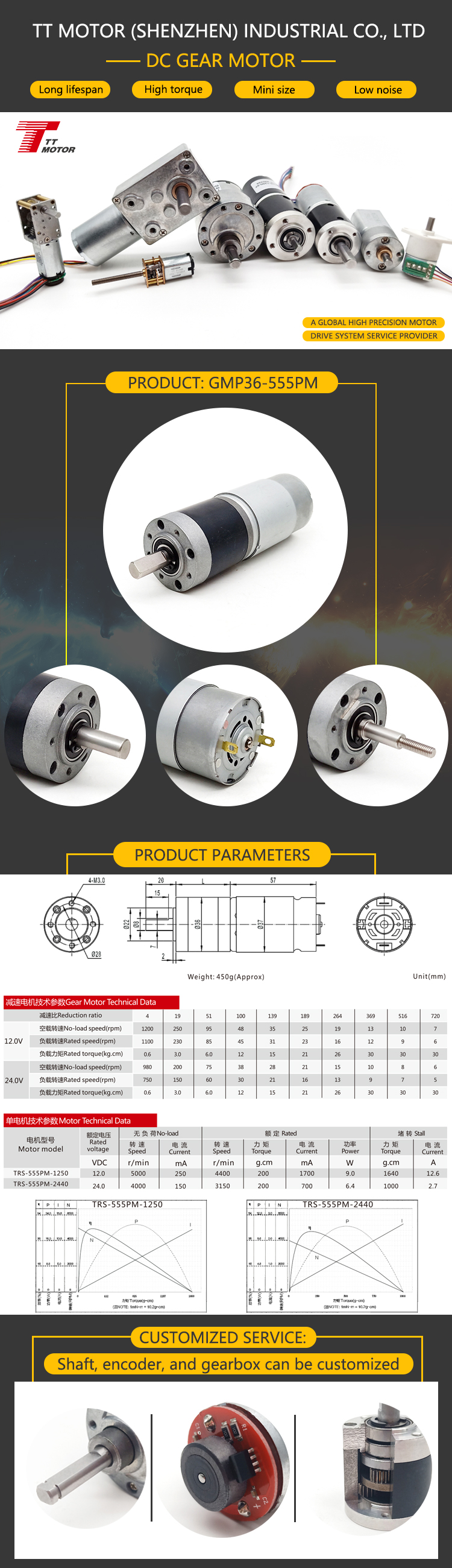

Model: Gear Motor GMP36-555PM
TTRS-555PM-1233
Rated Voltage: 12VDC
Rated Speed: 2800r/min
Output Power: 5.7W
No-load Speed: 3300r/min
Rated Torque: 200g.cm
Stall Torque: 1150g.cm
No-load Current: 200mA
Rated Current: 1000mA
Stall Current: 5.5A

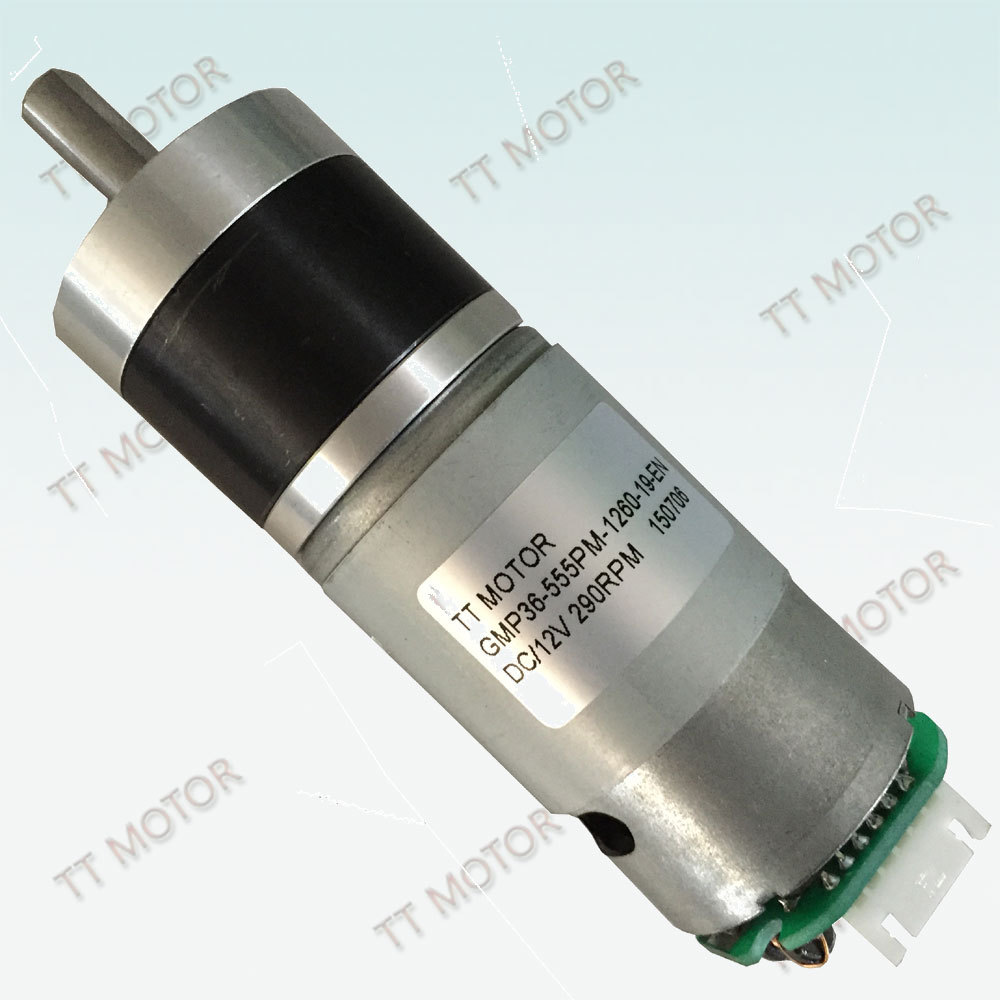

TTRS-555PM-1260
Rated Voltage: 12VDC
Rated Speed: 5250r/min
Output Power: 16W
No-load Speed: 6000r/min
Rated Torque: 290g.cm
Stall Torque: 2200g.cm
No-load Current: 300mA
Rated Current: 2400mA
Stall Current: 15.0A
TTRS-555PM-2440
Rated Voltage: 24VDC
Rated Speed: 3150r/min
Output Power: 6.4W
No-load Speed: 2400r/min
Rated Torque: 200g.cm
Stall Torque: 1000g.cm
No-load Current: 150mA
Rated Current: 700mA
Stall Current: 2.7A
Main Features

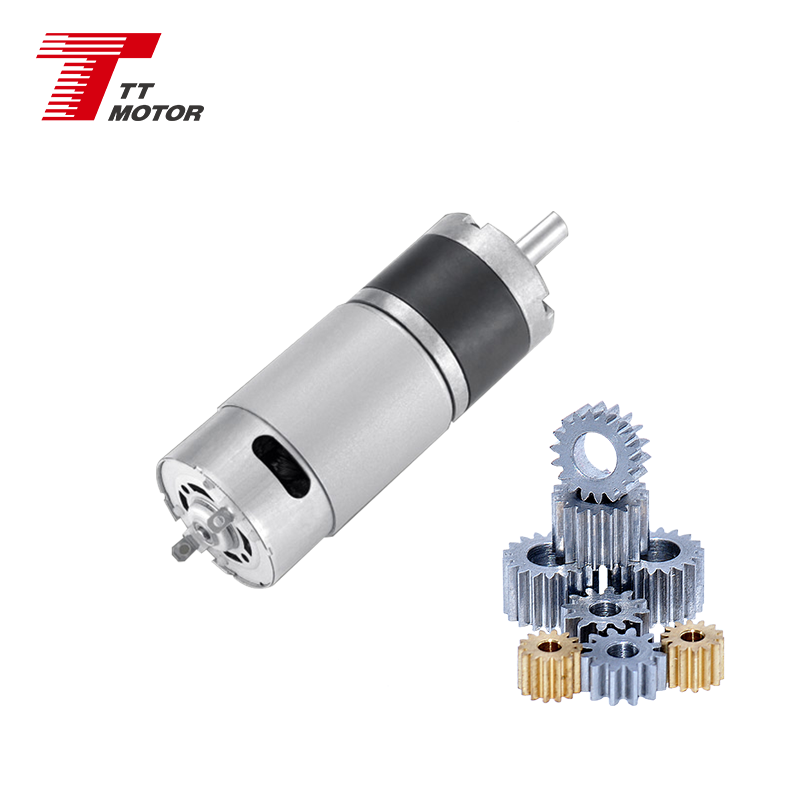

36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor.
Small size DC gear motor with low speed and big torque.
36mm gear motor provides 3.0Nm torque and more reliability.
Suitable to small diameter, low noise and big torque applications.
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others Application
Business Machines
Vending Machines
Printers
ATM
Copiers and Scanners
Camera and Optical
Video
Cameras
Projectors
-
Lawn and Garden
Lawn Mowers
Snow Blowers
Trimmers
Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Manufacturing Profile
Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools. Reliable, long-lasting, and backed by years of experience, approximately 98% of the output is exported worldwide.
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard packaging configuration.
Shipping Reference Times
DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea/Post: Destination dependent
Customer Feedback
"Excellent quality, competitive pricing, prompt service, and on-time delivery."
Frequently Asked Questions
Q: How to order?
A: Send us an inquiry → receive our quotation → negotiate product details → confirm sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample orders?
A: Samples are available for testing. Once the sample fee is charged, please be assured it will be refunded when a formal order is placed.
Q: Which shipping ways are available?
A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping routes are supported. Other customized transit options are also negotiable.
Q: How long is the production and shipping time?
A: Production lead time depends directly on the order size. Standard turnaround takes approximately 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support desk immediately. We will cross-reference the shipment records with the original packaging checklist to resolve the issue as fast as possible.
Q: How to confirm the payment?
A: We accept payment via T/T and PayPal. Alternate methods can be discussed prior to processing. Standard terms require a 30-50% deposit, with the remaining balance settled before shipping.
