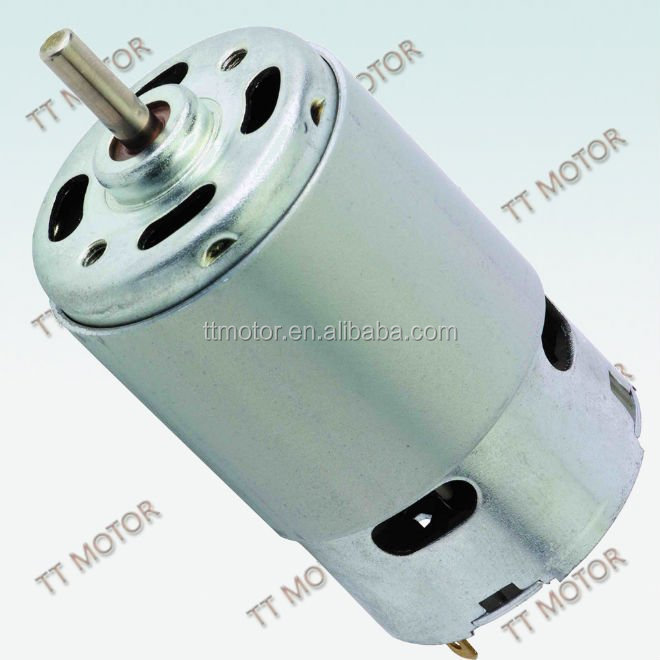

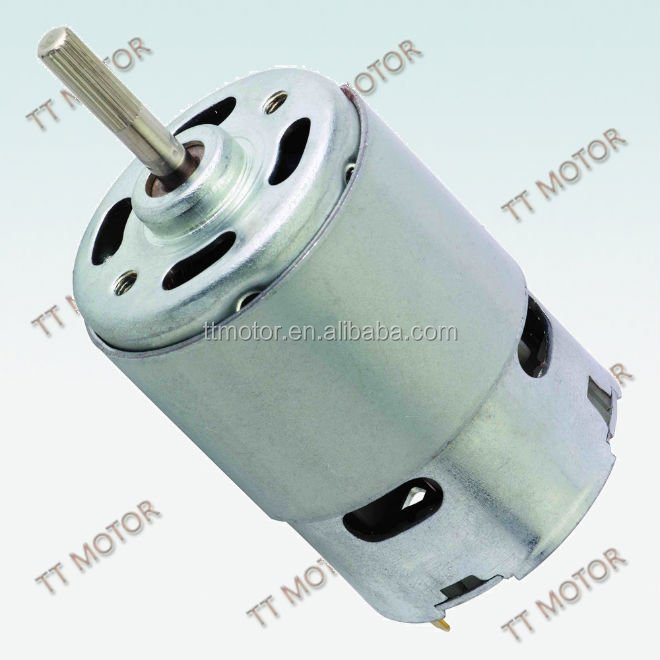

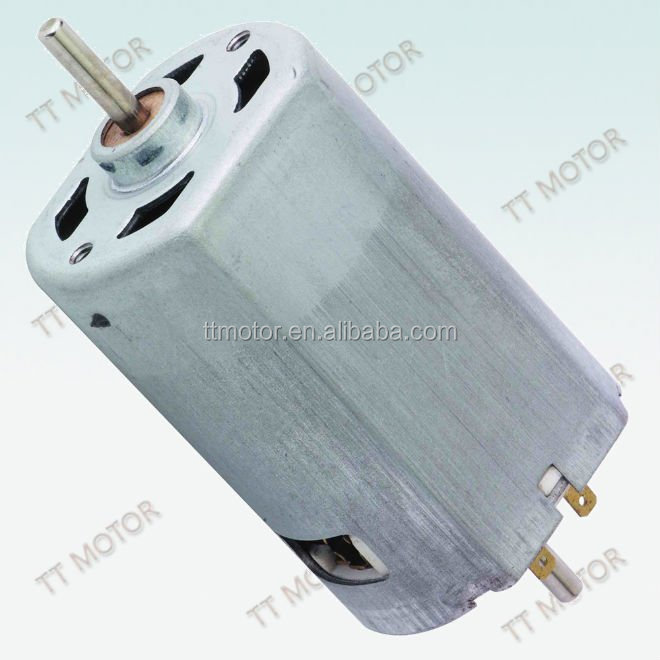

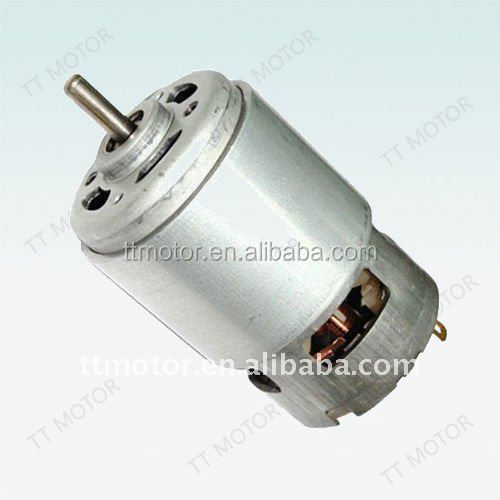

TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
1 / 5
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor
TRS-550PM or 24v Dc Motor

TRS-550PM or 24v Dc Motor

Send Inquiry

Product Description

24V DC Motor, TRS-550PM Specs
Voltage
120V
Speed
18000 RPM
Torque
3512 g.cm
Key Features
Low current & noise, no spark, no vibration
Typical Applications
Ride-on Toy, Grass trimmer, Air Compressor, Drill
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V r/min A r/min A mN.m g.cm w mN.m g.cm A
TRS-550PM 35100 3.0-18.0 12.0 5200 0.25 4330 1.60 29.41 300 13.3 176.47 1800 8.32
6530 6.0-12.0 12.0 18000 1.30 16100 7.15 41.18 420 69.0 344.31 3512 52.0
TRS-550PM or 24v Dc Motor
Frequently Asked Questions
What is the typical operating voltage for the TRS-550PM DC motor?
The operating voltage range depends on the configuration. The TRS-550PM-35100 model runs on 3.0V to 18.0V (nominal 12.0V), while the TRS-550PM-6530 model operates within 6.0V to 12.0V (nominal 12.0V).
What maximum speed can the TRS-550PM motor reach?
Under a no-load test with a nominal 12.0V input, the TRS-550PM-6530 variant can reach a maximum speed of up to 18,000 RPM.
What is the peak stall torque of this DC motor?
The TRS-550PM motor delivers high peak performance. Its maximum stall torque reaches up to 3512 g.cm (344.31 mN.m) at 12.0V for the 6530 specification.
Does this motor support low-noise and spark-free operations?
Yes, the TRS-550PM motor is engineered to operate with low current, minimal noise, zero sparks, and extremely low vibration, making it ideal for precision tools.
What are the common applications for the TRS-550PM motor?
This motor is highly versatile and widely used in applications such as ride-on toys, grass trimmers, portable air compressors, and electric hand drills.
