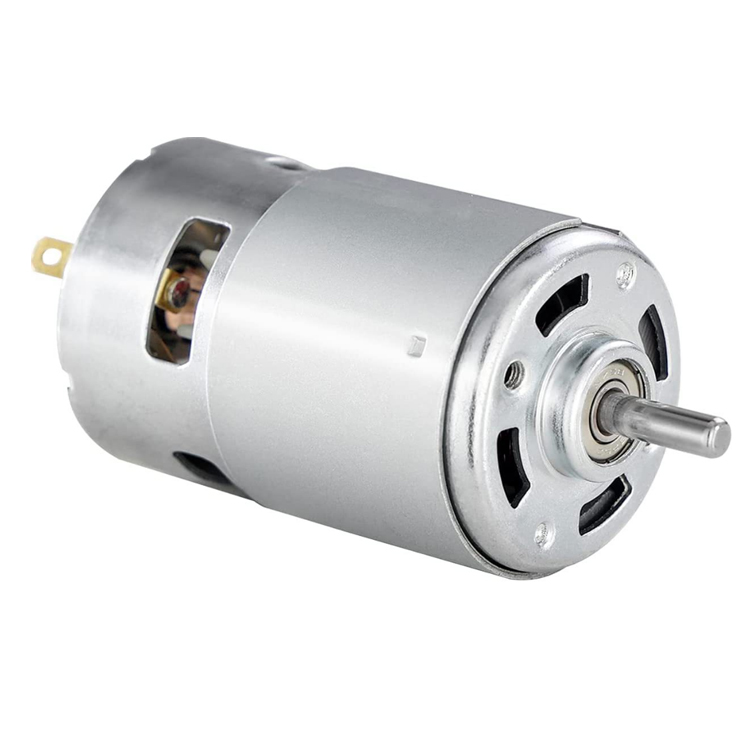

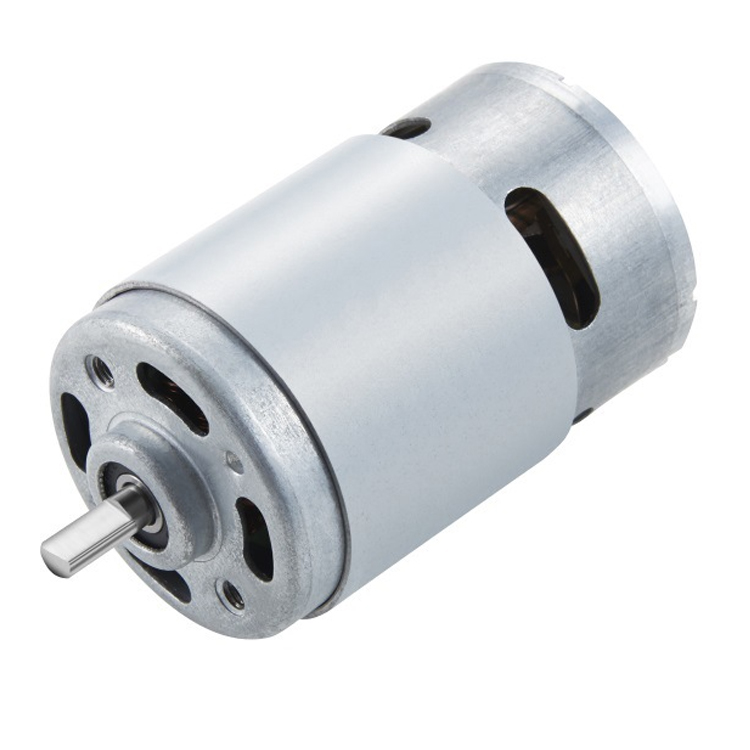

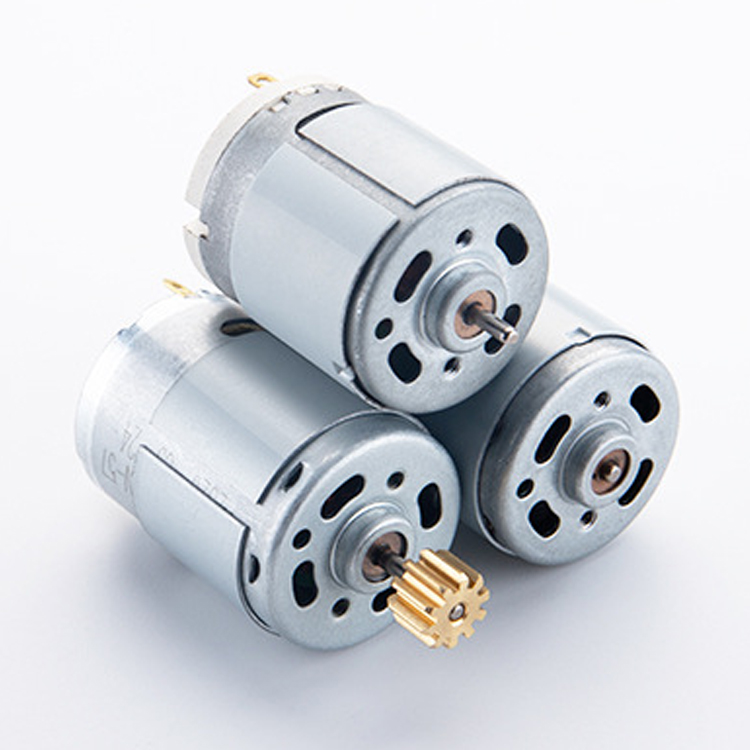

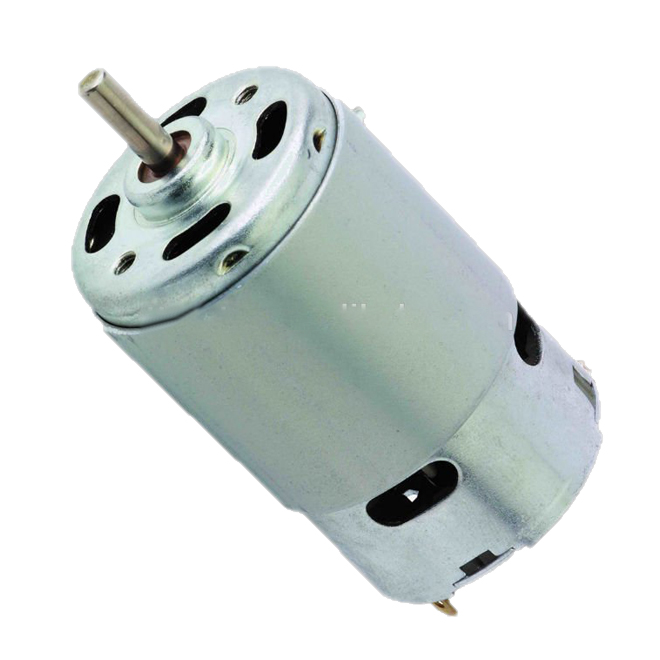

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
1 / 5
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor

Send Inquiry

Product Description

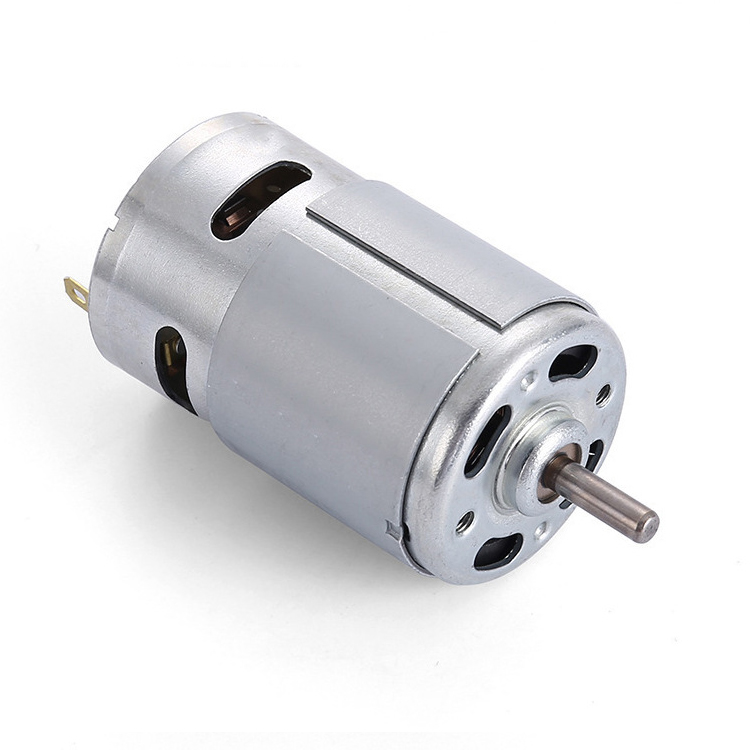

RS-555 and RS-775 DC Motor View 1
RS-555 and RS-775 DC Motor View 2
RS-555 and RS-775 DC Motor View 3

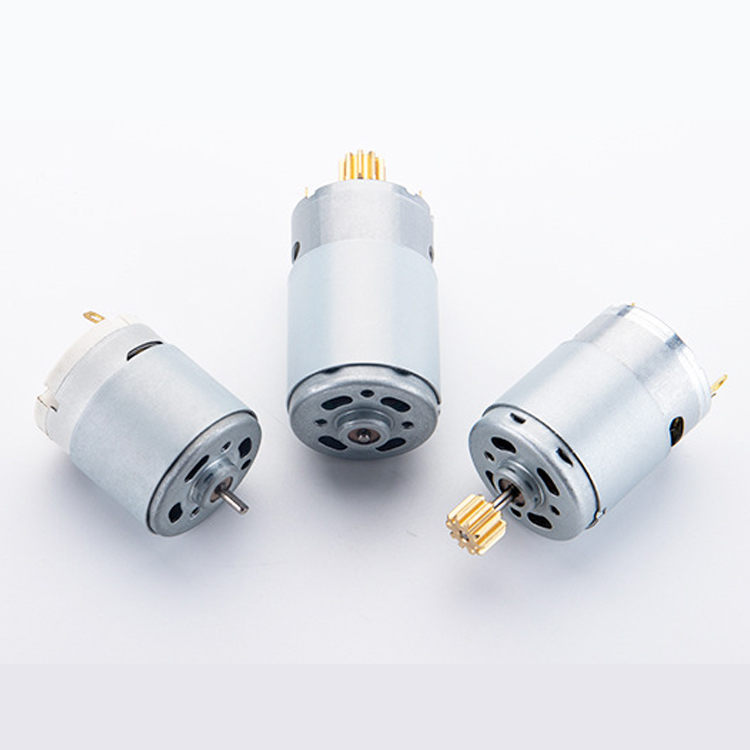

RS-555 and RS-775 DC Motor View 4
Product Features
  • Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
  • High efficiency, less noise, and low current, 24V DC motor.
  • Can match with 45mm planetary gearbox, or 51mm gear box.
  • Shaft: 5.0mm diameter, shaft length 14.5/19.5mm.
  • Mounting holes: 2-M4.0x0.7.
  • Double shaft for encoder, 12ppr.
  • Samples can be provided for your test.
Technical Specifications
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
V rpm A rpm A mN.m g.cm w mN.m g.cm A
TRS-775PM 2765 6.0-30.0 24.0 7600 0.37 5810 0.22 73.53 750 44.7 312.35 3186 8.23
4045 6.0-15.0 12.0 4600 0.60 3500 4.30 84.31 860 36.6 352.94 3600 16.1
RS-555 and RS-775 DC Motor Technical Drawing
Frequently Asked Questions (FAQ)
What are the typical applications for the RS-555 and RS-775 DC motors?
These motors are widely used in household and industrial appliances including printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, string trimmers, and more.
Can these motors be configured with a gearbox?
Yes, the motors can be matched with either a 45mm planetary gearbox or a 51mm gearbox depending on your application requirements.
What are the standard shaft specifications?
The motors feature a shaft diameter of 5.0mm, with selectable shaft lengths of 14.5mm or 19.5mm. They also support a double shaft configuration for 12ppr encoders.
What are the operating voltages for these DC brushed motors?
They run on typical nominal voltages of 12V and 24V DC. For model TRS-775PM, the operating range varies between 6.0V to 30.0V depending on the configuration.
How efficient and noisy are these motors during operation?
These 24v DC brushed motors are designed to offer high efficiency, low operating current, and minimal noise levels to ensure stable performance.
Are testing samples available?
Yes, samples can be provided upon request so you can conduct performance testing prior to finalizing your order.
